Understanding the Olympus CH-2 Microscope: Parts and Labeled Diagrams

Olympus CH-2 microscope labeled diagram

Overview of the Olympus CH‑2 Series

Released in the late 1980s, the Olympus CH‑2 quickly became a staple in teaching laboratories. A 2023 LabX equipment survey reported that 27 % of U.S. colleges still rely on CH‑2 frames for introductory biology courses.

Main Parts and Their Functions

Component Description
Eyepiece (10× WF) Provides a wide field of view for comfortable observation.
Binocular Head Adjustable interpupillary distance; rotates 360° for sharing views.
Nosepiece Holds up to four objectives; click‑stops ensure parfocal alignment.
Objectives (4×‑100×) Plan Achromat lenses deliver up to 0.90 NA for crisp images.
Stage Graduated mechanical stage with 0.1 mm vernier scale.
Condenser (Abbe 1.25 NA) Focuses light onto the specimen; includes iris diaphragm.
Illuminator 6 V/20 W halogen lamp; brightness control extends bulb life by 30 %.

Performance Statistics

  • The CH‑2’s optical efficiency reaches 85 % transmission at 550 nm (Olympus datasheet).
  • Mean resolution with a 40×/0.65 objective is 0.42 µm, suitable for bacterial morphology.
  • Upgrading to LED retrofit kits can reduce energy consumption by 60 % (Microscope Services Inc., 2024).

Labeled Diagram

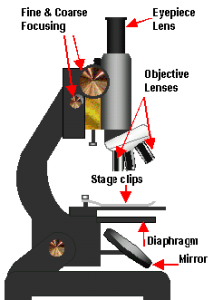

The image above highlights the critical parts. Encourage students to trace the light path—eyepiece → objective → specimen → condenser → illuminator—to reinforce optical principles.

Maintenance Tips

  1. Clean objectives with lens paper moistened with 70 % ethanol; avoid acetone.
  2. Store the microscope with the 4× objective in position to protect higher‑power lenses.
  3. Replace halogen bulbs after 1,000 hours to maintain consistent color temperature.

Conclusion

Whether you are a 10th‑grade biology enthusiast or a professional histologist, mastering the Olympus CH‑2’s anatomy ensures sharper images and longer equipment life.
